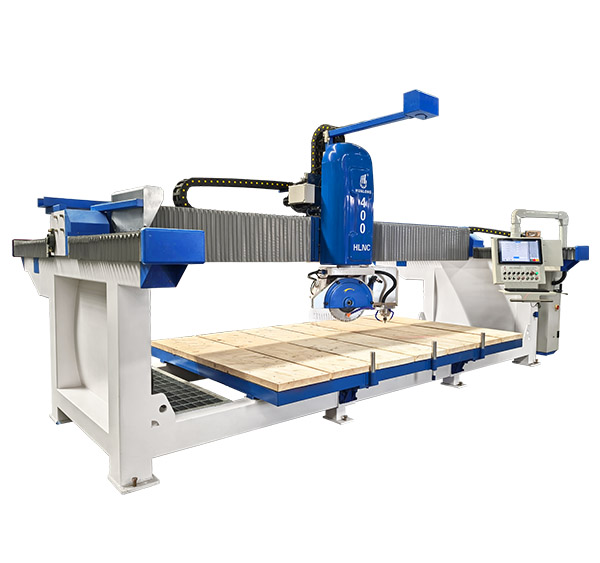

HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯
领跑智能制造新“石”代
HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯
所属品牌：华隆
所属类别：产品库
想了解更多相关产品信息，请联系我们！
0594-2197723
hualongmc@163.com
数控石桥锯 HLNC-400+ 是一款配备可倾斜头和可倾斜工作台的数控全插补四轴桥锯，能够对板材和石块进行任何类型的加工、切割（直线或曲线、垂直或倾斜）、二维轮廓加工、铣削和二维雕刻操作。
该机器可一次性或分步加工大理石、花岗岩、复合石材和陶瓷制品。
该机器可高度定制，是以下高产量车间的理想解决方案：
* 厨房台面
* 梳妆台台面
* 室内外墙板
* 地板
* 门阶、楼梯和门槛
* 街道家具
* 浮雕
CNC Stone Bridge Saw
HLNC-400+ is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops
* vanity tops
* wall panels for interiors and exteriors
* flooring
* doorsteps, staircases and thresholds
* street furniture
* bas-reliefs
|
Modle No.
|
HLNC-400+
|
HLNC-650+
|
|
Diameter of saw blade
|
mm
|
ø400
|
ø650
|
|
Blade mitering
|
°
|
0-45
|
0-45
|
|
Dimension of working platform
|
mm
|
3500x2100
|
3500x2100
|
|
Max. cutting length
|
mm
|
3500
|
3500
|
|
Max. cutting thickness
|
mm
|
70
|
200
|
|
Max. lifting stroke
|
mm
|
250
|
300
|
|
Max. lifting weight by sunction cups
|
kg
|
100 x 2
|
100
|
|
Power of main motor
|
kw
|
15
|
18.8
|
|
Power of electric spindle motor
|
kw
|
5.5
|
5.5
|
|
Power of cutter frame reciproctating motor
|
kw
|
2
|
2
|
|
Power of crossbeam shifting motor
|
kw
|
1.1
|
1.1
|
|
Power of hydraulic station motor
|
kw
|
2.2
|
|
|
Power of lifting motor
|
kw
|
0.85
|
0.85
|
|
Gross power
|
kw
|
28.7
|
32.5
|
|
Water consumption
|
m3/h
|
2
|
2
|
|
Gross weight
|
kg
|
4500
|
6000
|
|
Dimensions (L x W x H)
|
mm
|
5800x3380x2770
|
6200x3380x3000
|
温馨提示：如果想了解更多细节，规格、标准、价格和解决方案，请联系我们。
